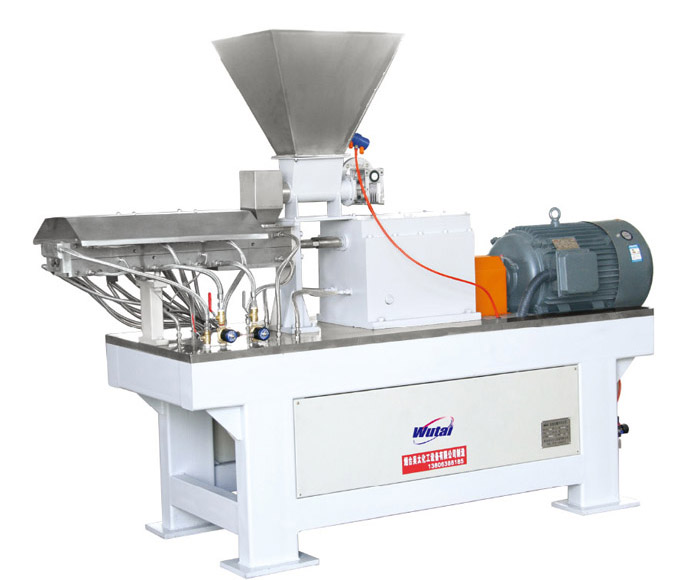

ZSJ型双螺杆挤出机
ZSJ型双螺杆挤出机，是双螺杆同向旋转结构，螺杆上的螺纹块和混炼块相互精密齿合作用下，将原料充分热熔，取得混料和分散效果。
主要特点：
*高产出量和混炼效果, 光泽度比普通挤出机提高3-5度。
*机筒具有高效热交换及温度自动控制系统。
*机筒对开设计，清机、维修方便。

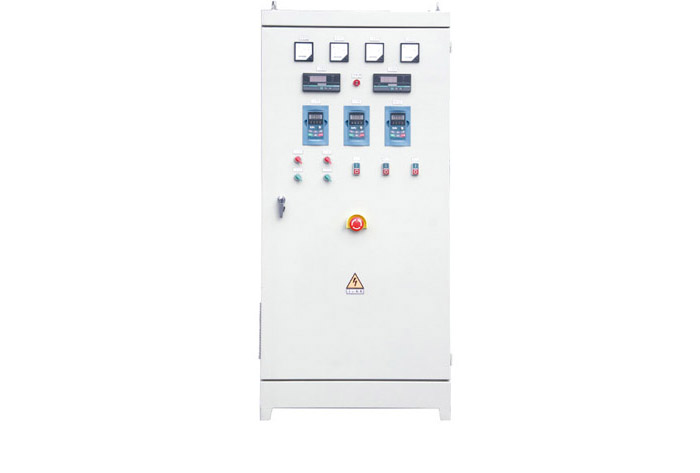

*电控模式有三种选择：
(a)常规控制
(b)按欧洲标准设计
(c)电脑触摸屏 PLC可编程控制
*具有优良的自清洁能力。
*进料系统备有计量螺杆，进料量准确均匀。
*操作安全可靠。
*采用先进温控表双向PID控制±2℃。
*螺套采用分段式衬瓦设计。
*进料口配强磁保护装置。
*采用专用硬齿面挤出机减速箱，低噪音，高效可靠。
*油路电控自动报警（选配）。
*螺筒设有软化水自动循环冷却系统（选配）
*喂料采用按摩或摆动装置，防止物料打桥架空（选配）

ZSJ series twin screw extruder

This extruder is co-rotating twin screw extruder ,materials can achieve ideal dispersed and kneaded effect after fully hot-melted under the precise intermeshing action of the conveying elements and kneading elements on the screws.
Main Features
*High output capacity and excellent mixing efficiency, glossiness can increased 3-5 degree than normal extruder.
*Clamshell barrel has high efficient heat-exchange and automatic temperature control system
*Barrel is opposite open type,easy to clean
*Hopper with screw shaft ensure the uniform feeding
*Automatic alarm of lubricating oil control system
*Advanced two way PID temperature control system with tolerance ±2℃
*The clamshell barrel cooled by automatic recycle filter water (optional equipment)
*Screw sleeve is segment liner design
*3 types electric control type for your choose
(a) Normal control
(b) design according to the EU standard.
(c) Touch screen computer display and PLC control
*Gearbox designed in lower noise and high speed
*To void the raw material jam in the hopper , the feeder is with vibrate or swing system(option equipment)
*There is strong permanent metal magnetic detector system

型号及规格Specification
