YPJ系列不锈钢带冷却压片机 >> YPJ系列不锈钢带冷却压片机

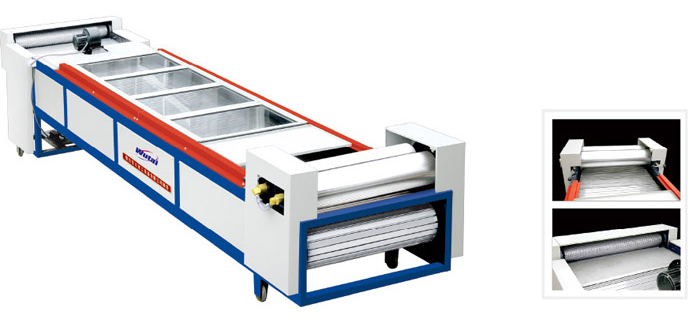

YPJ系列不锈钢带冷却压片机

YPJ系列冷却压片机
YPJ系列链板压片机由压辊、不锈钢链板、破碎辊和行走机构组成。挤出机挤出的热熔状态物料经压辊压成1-1.5mm厚的带状物。压辊采用水冷却。物料在输送过程中用吹风机吹风,继续将物料冷却成固态,破碎成片状物料落入料斗

主要特点:
*使用清洁冷水冷却
*高生产率
*易于清机和维修
*压辊采用双筒夹层螺旋工艺
*压辊表面采用碳钢特殊工艺,多层镀膜工艺
*履带有正反转控制等保护措施。

YPJ series stainless steel air cooling belt

The cooler is consisted of cooling rolls , stainless steel segment conveyor , air blowers , crushers , frame and motors . The kneading material coming down from extruder are squeezed by the rolls into a long and wide sheet at thickness 1-1.5mm. The rolls are chilled by chilling water inside . The sheet is conveyed into the crusher while cooled by fans or chilled air blower continuously , in the end , the crusher breaks the sheet in to chips and chips fall down to the material container.

Features

*Roll surface is carbon steel with special treatment
*Cooling by chilled water
*Double layer rolls , two emergency buttons
*Each to clean and maintenance



型号Model

压辊直径Roll dia(mm)

带宽Width(mm)

带长Length(mm)

产量Output(kg/h)

电机功率Motor power(kw)

YPJ-408

191

800

4000

200

1.5

YPJ-508

191

800

5000

300

1.5

YPJ-509

290/191

900

5000

500

2.2

YPJ-612A

290/191

1200

6000

700

2.2

YPJ-612B

450/191

1200

6000

800

2.2
